NRAS Mutation Detection

NRAS mutations have been implicated in the pathogenesis of different cancers, particularly common in melanoma, hepatocellular carcinoma, myeloid leukemia, and thyroid carcinoma 1, 2. About 15–25% of cutaneous melanomas have NRAS mutations; most of these mutations are missense mutations at codons 12, 13, or 61. Analysis of NRAS mutations has been used to categorize the types of melanomas and optimize the targeted therapy of melanomas, for example, the mutant NRAS melanoma cells are more sensitive to the pharmacologic c-Met inhibitors than those with BRAF mutations3-5.

Based on the Shifted Termination Assay (STA) technology, our MutectorTM reagents contain special chemistry and a modified enzyme mixture to enrich the mutation signal 20-fold and detect as low as 1% mutation in wild type background. The MutectorTM reagents have been widely used to detect BRAF, KRAS and other mutations in clinical samples including FFPE samples  (see STA/Mutector-related Publications).

What is different

  • Detect more mutations –   Simultaneously detect 16 mutations include the rare mutations (see below), detects all possible mutations in target codon
  • Use less clinical samples –  works for small amount of samples such as fine needle aspiration (FNA) sample
  • Detects low level (1-5%) mutations
  • Accurate –  like the sequencing, the mutation is double confirmed by peak color and fragment size

Assay Information

Target Mutations           Codon 12: G12AG12CG12DG12RG12SG12V
                                     Codon 13: G13AG13CG13DG13RG13SG13V
                                     Codon 61: Q61KQ61LQ61P, Q61R

Assay Platform         Capillary sequencer ABI 3100, 3700, 3130, 3500
Assay Sensitivity      Detects 1-2% NRAS mutations
Sample Required      20-160 ng DNA

Assay workflow

Order Information

Cat. No. Product NameTarget MutationsSizeDocuments
GP18NRAS mutation detection kit12 NRAS mutations in codon 12 & 13 32 rxnManualProduct flyer
GP19NRAS codon 61 detection kit4 NRAS mutations in codon 6132 rxnManualProduct flyer

For research use only. Not for use in diagnostic procedures.

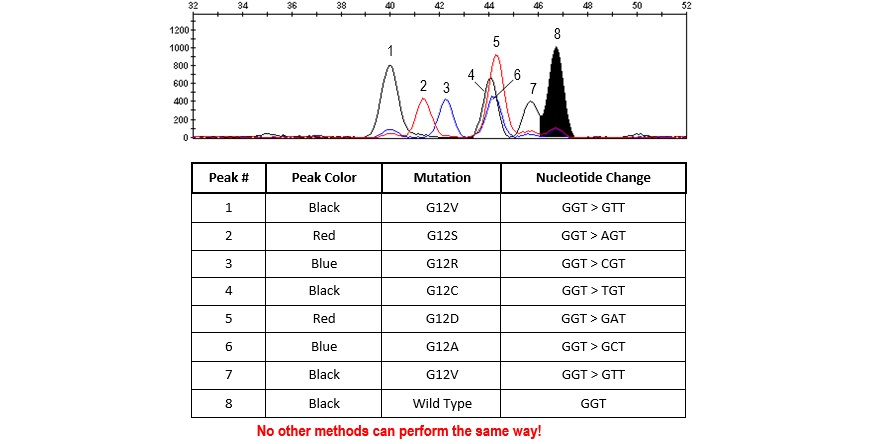

Example results of NRAS codon 12 mutation analysis:
Six control mutations of codon 12 were simultaneously detected in a single tube

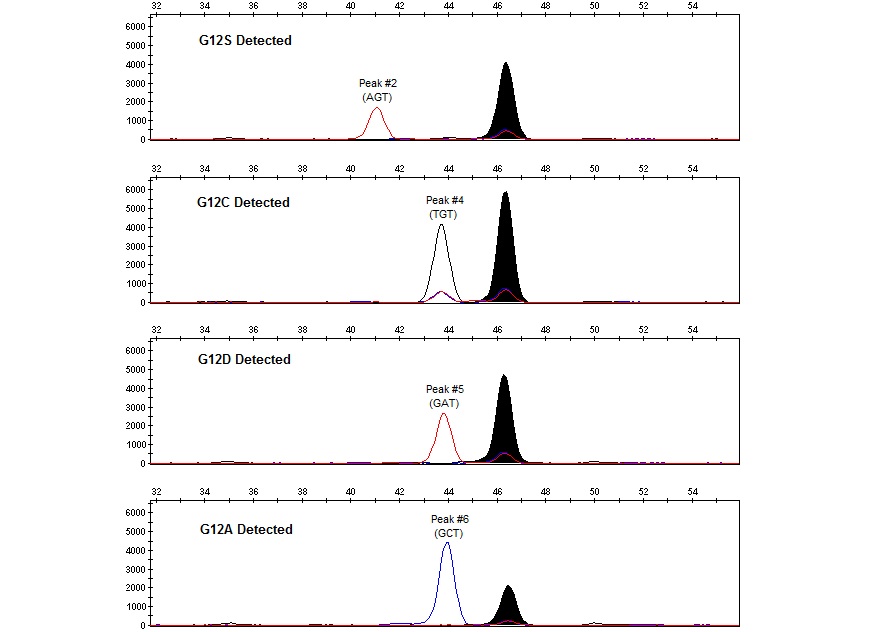

Assay results of FFPE samples

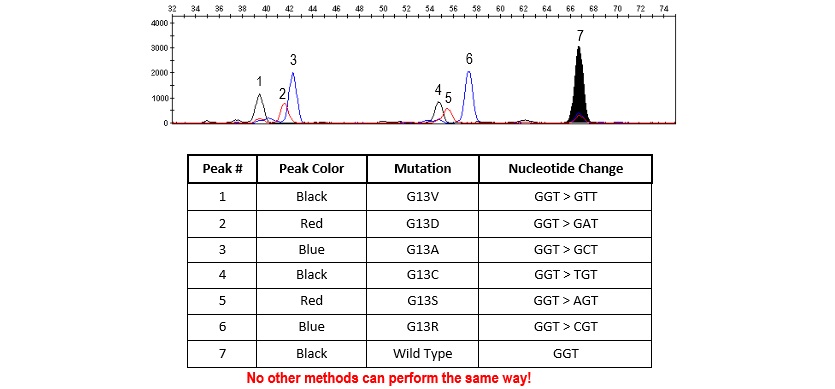

Example results of NRAS codon 13 mutation analysis:
Six control mutations of codon 13 were simultaneously detected in a single tube

Assay results of FFPE samples

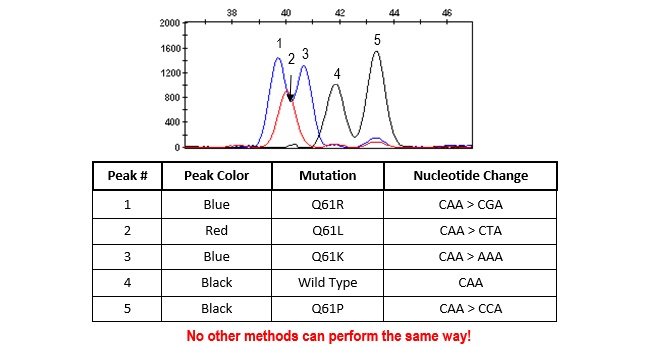

Example results of NRAS codon 61 mutation analysis:
Four control mutations of codon 61 were simultaneously detected in a single tube

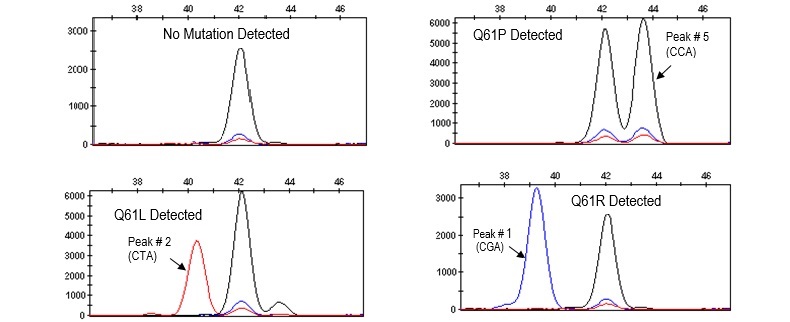

Assay results of FFPE samples


Related Products


  1. Schubbert S et al. (2007). Hyperactive Ras in developmental disorders and cancer. Nat Rev Cancer. 4:295.
  2. Fernández-Medarde A et al. (2011). Ras in cancer and developmental diseases. Genes Cancer. 2:344.
  3. Jakob JA et al. (2012). NRAS mutation status is an independent prognostic factor in metastatic melanoma. Cancer. 118:4014
  4. Kelleher FC et al. (2012). Targeting NRAS in melanoma. Cancer J. 18:132
  5. Chattopadhyay C at al. (2012). Association of activated c-Met with NRAS-mutated human melanomas. Int J Cancer. 131:E56
